Eco-Flow
← Back to training Part 8 · Practical · optional

Monitoring runs with Seqera Platform

🚀 Start now: Open in GitHub Codespaces — first launch takes a couple of minutes to build.

⏱ Estimated time: ~30 minutes  •  🟡 Practical · optional

🎯 Who is this for? Anyone who’d rather follow their runs in a web browser than in a terminal — especially once runs move to an HPC and take hours or days. You’ll need a free Seqera account (Step 1). Everything here works from Codespaces, your laptop, or a cluster.

What you’ll learn

  • What Seqera Platform is, and what it does (and doesn’t) do for you
  • How to create an access token, and keep it safe
  • How to watch a run live in the browser, and read what it tells you
  • How to do the same for runs on your HPC
  • What’s involved in launching pipelines from the Platform

Step 0 — What is Seqera Platform?

Seqera Platform is a web interface for Nextflow runs, built by the same people who make Nextflow. It was called Nextflow Tower until 2023, which is why the token and the command-line flag below still say “tower”.

It gives you, in a browser:

  • live progress of a run: every task, its status, and its logs
  • resource usage: how much CPU and memory each step really used
  • a record of what was run: the exact command, parameters and config
  • optionally, a Launchpad to start pipelines by filling in a form instead of typing a command

🧠 It doesn’t run anything itself. Your pipeline still runs where it always did: your Codespace, your laptop, your HPC, or a cloud account. The Platform watches those runs (and can submit them for you, see Step 5). It’s a dashboard, not a computer.

Flavour What it is
Seqera Cloud Hosted at cloud.seqera.io, free to sign up and use for monitoring. This is what we’ll use.
Seqera Enterprise The same software, installed and run by your own institution. If your organisation has one, use its address instead of cloud.seqera.io.

Step 1 — Create an account and an access token

  1. Go to cloud.seqera.io and sign in with GitHub, Google, or an email address. (With email, you’re sent a sign-in link rather than setting a password.)

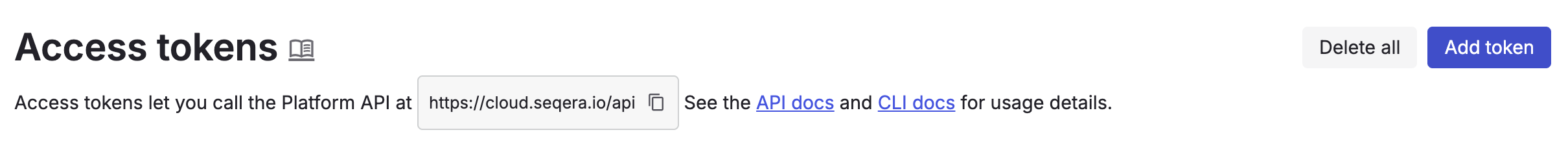

  2. Once you’re in, open the user menu (your name, top right) and choose Settings → Your tokens.
  3. Select Add token, give it a name you’ll recognise (e.g. codespaces-training), and create it.
  4. Copy the token now. It’s shown only once. If you lose it, delete it and make a new one.

🔐 A token is a password. Anyone holding it can act as you in the Platform. Don’t paste it into a file you might commit, a chat message, or a shared notebook. If it leaks, delete it on this page — that immediately stops it working.

👥 Workspaces. New accounts also get access to the Community Showcase workspace, which comes with ready-made nf-core pipelines and some free cloud compute to try them on. Your own runs, like the ones below, go to your personal workspace by default.

Step 2 — Give the token to Nextflow 🖥️

Nextflow reads the token from an environment variable called TOWER_ACCESS_TOKEN:

export TOWER_ACCESS_TOKEN=<paste your token here>

That lasts until you close the terminal. Two better options for everyday use:

💾 Keep it across sessions (recommended in Codespaces)

Add it as a Codespaces secret, so every Codespace you open has it automatically and it never touches the repository:

  1. Go to github.com/settings/codespaces → New secret.
  2. Name it TOWER_ACCESS_TOKEN, paste the value, and give it access to this repository.
  3. Rebuild or reopen your Codespace, then check it arrived: echo ${TOWER_ACCESS_TOKEN:0:4} (prints just the first few characters).

On your own machine or a cluster, the equivalent is a line in ~/.bashrc. On a shared cluster, make sure the file isn’t readable by others (chmod 600 ~/.bashrc).

🔑 Or store it in Nextflow's own secrets
nextflow secrets set tower_access_token "$TOWER_ACCESS_TOKEN"

Then refer to it from a config file, instead of writing the token itself:

tower {
    enabled     = true
    accessToken = secrets.tower_access_token
}

⚠️ Never write the token directly into nextflow.config or any file in a git repository. That’s one of the most common ways secrets get published by accident.

Step 3 — Watch a run live 🖥️

Add -with-tower to any nextflow run command. Let’s use the same small pipeline as Part 7:

nextflow run nf-core/demo -r 1.2.0 -profile test,docker --outdir demo_results -with-tower

Near the top of the output, Nextflow prints a link to the run — Ctrl-click (or Cmd-click) it to open the Platform in your browser:

Monitor the execution with Seqera Platform using this URL: https://cloud.seqera.io/user/<your-name>/watch/<run-id>

The page updates as the run progresses. There’s a lot on it; these are the parts worth knowing:

Tab What it’s good for
Tasks Every task, with its status (pending, running, cached, succeeded, failed) and the resources it used. Click one to see its command, work directory and logs — the same things you dug out of work/ by hand in Part 3.
Metrics Charts of how much CPU and memory each process actually used, against what it asked for.
Logs The Nextflow console output, downloadable.
Configuration The exact command and the fully resolved configuration used for this run.
Inputs / Outputs The parameters and input files, and the reports and files produced.
Run Info A summary: who ran it, where, with which Nextflow version and executor.

▶️ Challenge — read the run

  1. In Tasks, open the FASTQC task and find the work directory and the command it ran. Does the command look like the .command.sh you read in Part 3?
  2. In Metrics, which process used the most memory? In Part 7 Step 2 you found that FASTQC asks for 12 GB. How much did it actually use?
  3. Run the command again with -resume added. What changes in the Tasks tab?
✅ What you should notice
  1. It’s the same command, containers and work directory that Nextflow writes into work/. The Platform is showing you the same information, without you needing to find the hash.
  2. On this tiny test dataset, every step uses a small fraction of what it requests — a few hundred MB at most. Requests are sized for real data, which is exactly why over-requesting is so common, and why the Metrics tab is useful when tuning a real pipeline for your cluster.
  3. The re-run appears as a separate run in the Platform, with its tasks marked cached instead of running again.

💡 Nothing leaves your machine except metadata. Nextflow sends the Platform the run’s progress, commands and resource figures, not your sequencing data or results.

Step 4 — Monitoring your HPC runs 🏢

This is where the Platform really earns its place: a run on a cluster can last for days, and checking on it otherwise means logging back in and hunting through logs.

It’s the same flag. In the driver job script from Part 7 Step 5, add the token and -with-tower:

export TOWER_ACCESS_TOKEN=<your token>       # better: put this in ~/.bashrc

nextflow run nf-core/rnaseq -r 3.26.0 \
  -profile singularity,<your_cluster> \
  --input samplesheet.csv --fasta genome.fasta --gff genes.gff.gz \
  --outdir results \
  -with-tower \
  -resume

Or turn it on in a config file instead of the flag, which is tidier if you always want it:

tower {
    enabled = true
    // accessToken is read from $TOWER_ACCESS_TOKEN
    // endpoint = 'https://api.cloud.seqera.io'   // change this for an Enterprise instance
}

Two things to check on a cluster:

  • Outbound internet. The machine running the driver (the login node, or the node your driver job lands on) must be able to reach api.cloud.seqera.io over HTTPS. Compute nodes don’t need it. If your cluster blocks outbound traffic, ask your HPC team, or use your institution’s Enterprise instance if it has one.
  • Where the token lives. ~/.bashrc is convenient, but on a shared filesystem make sure it’s private (chmod 600 ~/.bashrc).

Now you can close your laptop and check the run from a phone. When a task fails, the Tasks tab gives you its error and log without an ssh session.

Step 5 — Launching pipelines from the Platform (overview)

Monitoring only sends information out. The Platform can also start runs for you, which is how labs give pipelines to colleagues who don’t use the command line. You don’t need this for the course, but it’s worth knowing what’s involved.

Piece What it does
Compute environment Where runs happen: AWS/Google/Azure, or your HPC. You set it up once.
Launchpad A form per pipeline: pick parameters, press Launch. Runs go to the compute environment you chose.
Datasets Samplesheets uploaded and versioned in the Platform, selectable from the Launchpad.
Secrets Credentials (e.g. for private registries) that pipelines can use without anyone seeing them.

For an HPC, the interesting piece is the Agent. Clusters almost never accept inbound connections, so instead of the Platform connecting in, you run a small program on the login node that connects out to the Platform and waits for work. It’s a single binary, started inside tmux so it keeps running (the same trick as Part 7’s Option A), and it submits jobs to your scheduler as you.

🧭 Is it worth it? If you’re comfortable running pipelines from the terminal, monitoring (Steps 3–4) gives you most of the benefit for five minutes of setup. The Launchpad pays off when several people need to run the same pipeline, or when the people running it aren’t command-line users. Setting up a compute environment usually needs your HPC or cloud team involved.

Recap

  • Seqera Platform is a dashboard for Nextflow runs. Your compute stays where it is.
  • Create a token (Settings → Your tokens), and pass it to Nextflow with TOWER_ACCESS_TOKEN — never in a file in git.
  • Add -with-tower to any run, or set tower.enabled = true in a config.
  • The Tasks and Metrics tabs show what each step ran and what it really used: the easiest way to see whether your resource requests make sense.
  • On an HPC, this means watching a multi-day run without logging in. The driver just needs outbound HTTPS.

Finish

🎉 You can now watch your runs from anywhere, and you’ve seen what the Platform offers beyond monitoring.

Next steps:
